Axial Fan

  • GZ cement rotary kiln cooling axial flow fan
  • GZ cement rotary kiln cooling axial flow fan
  • GZ cement rotary kiln cooling axial flow fan
  • GZ cement rotary kiln cooling axial flow fan
GZ cement rotary kiln cooling axial flow fanGZ cement rotary kiln cooling axial flow fanGZ cement rotary kiln cooling axial flow fanGZ cement rotary kiln cooling axial flow fan

GZ cement rotary kiln cooling axial flow fan

  • Cement rotary kiln Cooling Fan
  • Cement cylinder Cooling Fan
  • GZNO.6
  • Cylindrical Axial flow Fan
  • Product description: This page details the technical parameters, product performance, dimension diagram, air volume, wind pressure and motor power of the GZ cylinder axial fan.
  • INQUIRY

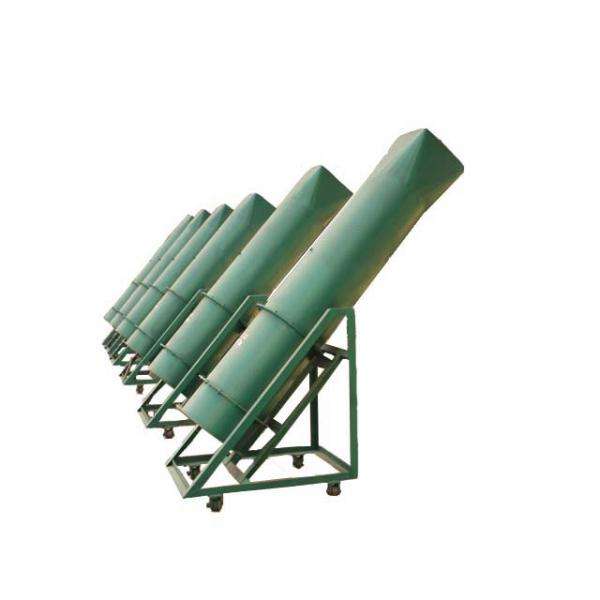

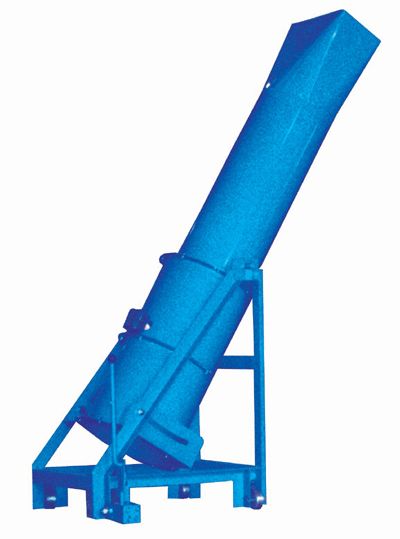

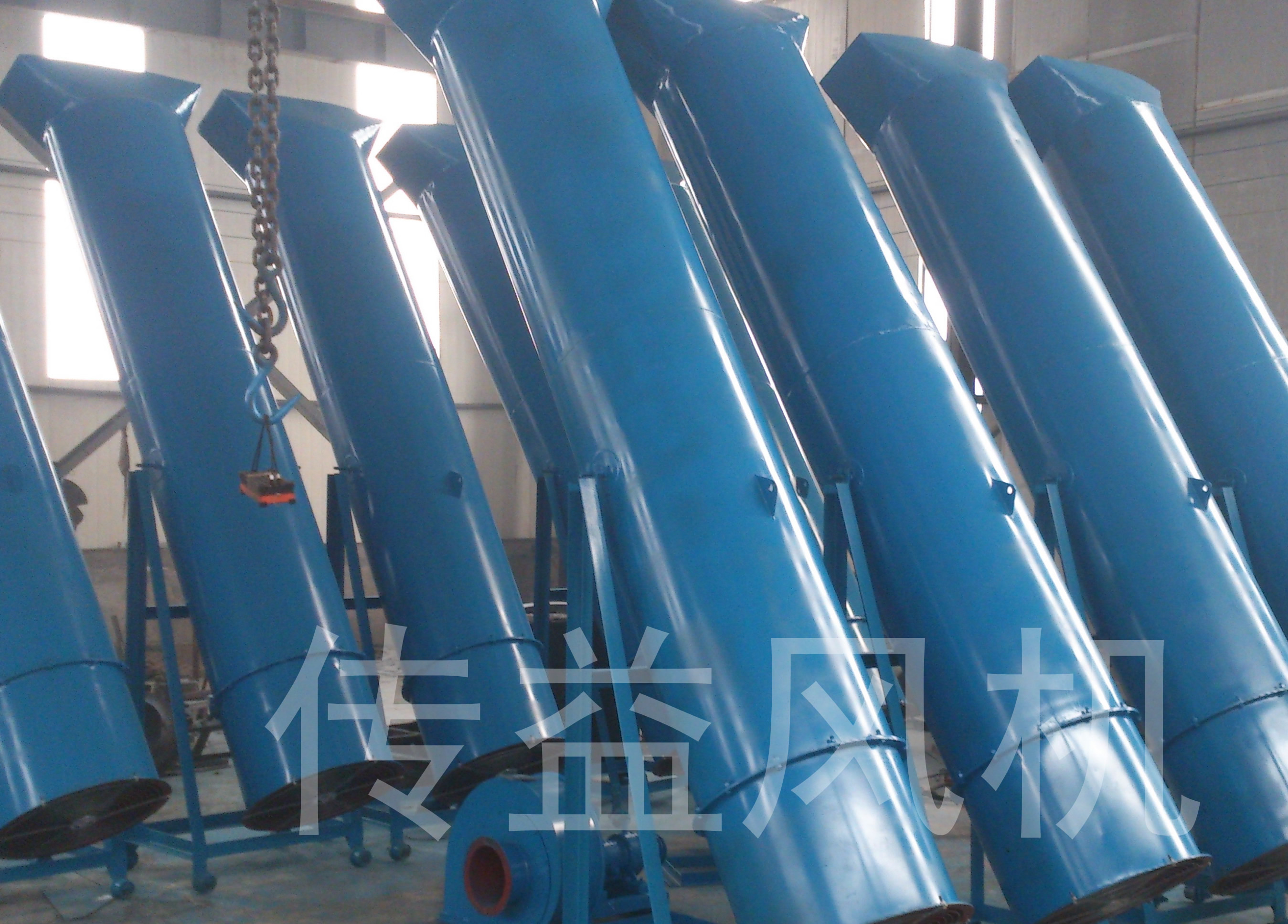

Cylinder Axial fan is also known as cement rotary kiln cooling axial fan, cylinder cooling fan, is the cement plant rotary kiln cylinder cooling dedicated axial fan, by the car, bracket, fan, direction adjustment device, air cylinder, nozzle composition. Mainly used in cement industry kiln body in the combustion of cement clinker when the kiln body cooling, can be used for the cooling of other rotary kiln, the fan is a removable air-cooled device.

The fan can move freely or put on a laid track. By adjusting the blowing angle operation can not be, usually, need more than 10 units in order to play a uniform and good cooling effect on the cylinder.

Fan power supply requirements for three-phase alternating power, 380V, 50HZ.
Equipped with a dedicated transmission frame or mobile cable. Before operation, check whether the connection parts are fastened and remove foreign bodies from the runner.
Stir the fan impeller and should not There is a rubbing phenomenon. The temperature of the blowing medium does not exceed 60 ℃, the dust content is not greater than the 150mg/m3, not more than 1mm diameter of debris, no explosive and corrosive, in order to facilitate the normal operation of the fan. Products in the use of the process if found abnormal, to be immediately overhauled.
In addition, to regularly remove the fan inside the ash, dirt and other impurities. Fan parameters: Please contact our company by phone 13793313126 0533-6820280
